Specificaties:

• Pressure Range: 5-3000psi/-14.5 to 30psi/-14.5 to 45psi/10bar
• Oorsprong: Cn (Oorsprong)
• Working Temperature: -40 to +85℃
• Temperature Effect on Zero: Typical:0.02%FS/℃;Maximal:0.05%FS/℃
• Temperature Drift on Sensitivity: Typical:0.02%FS/℃;Maximal:0.05%FS/℃
• Singal Output: 0.5-4.5V or 1-5V Linear Voltage Output
• Sensor Core: Ceramic Pressure Sensor
• Protection Class: IP65
• Pressure Type: Gauge Pressure
• Pressure Thread: NPT1/4 for 3000psi,NPT1/8 for others
• Pressure Medium: non-corrosive liquid or gas
• Power Supply: 5VDC or 12VDC
• Modelnummer: BX-PTV201
• Merknaam: BENXU
• Max Meetbereik: 59 Bar & Onder
• Long-term Stability: ≤±0.2%FS/year

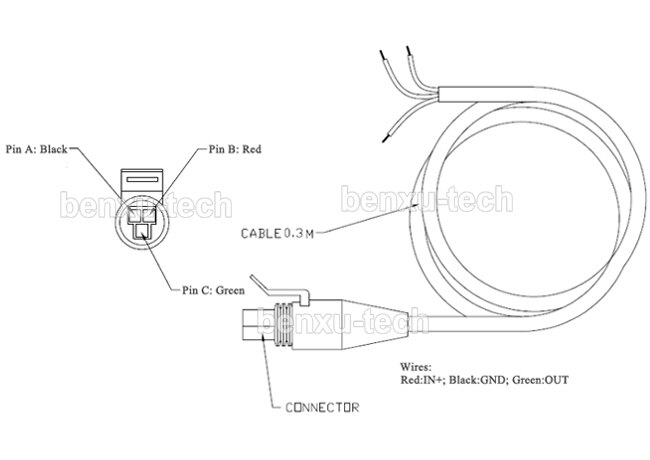

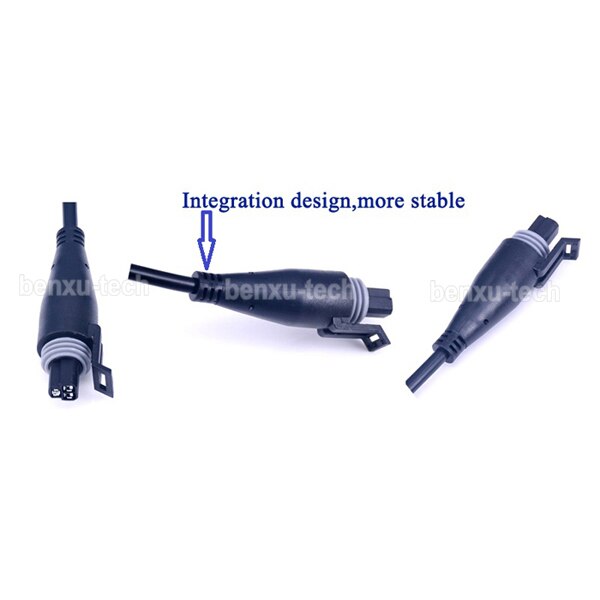

• Electrical Connection: Packard plug-in Unit

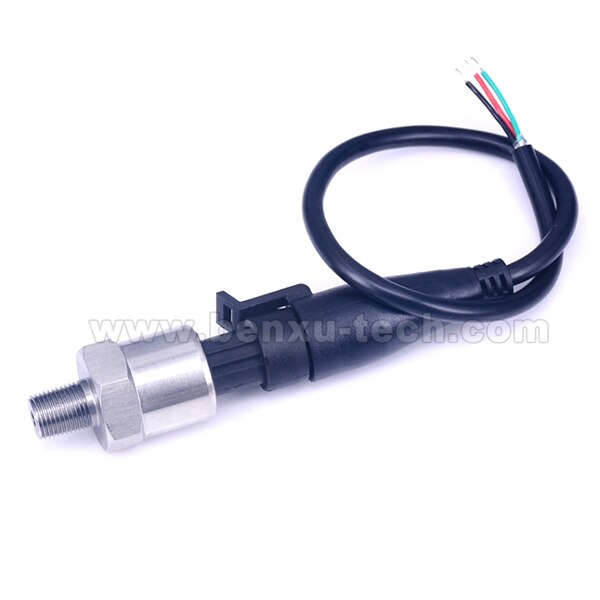

• Each Package Included: 1pc Pressure Transmitter+1pc 0.3m Cable
• Certificate: CE&ROHS
• Case Material: 304 Stainless Steel
• Accuracy: +/-1%FS
